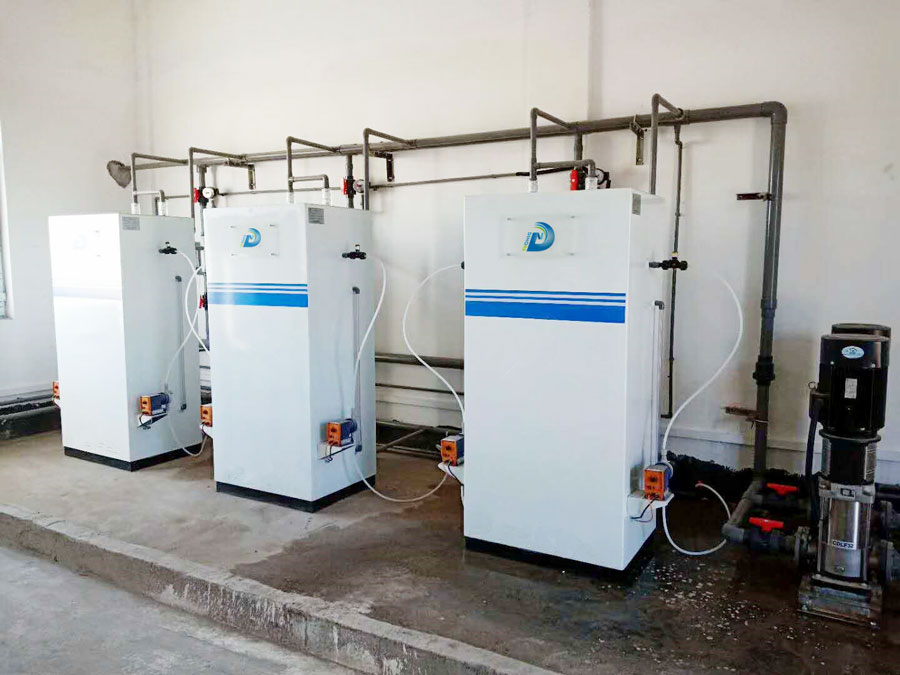

Application case of titanium electrolyzer for disinfection of drinking water in rural areas

Compared with other disinfection methods, the advantage of electrolytic disinfection technology is that it can disinfect drinking water only through the ordinary consumables of salt and water, without storing chemical agents and secondary pollution.

The relevant parameters of this titanium electrolyzer produced by Di Noer company for drinking water disinfection are as follows:

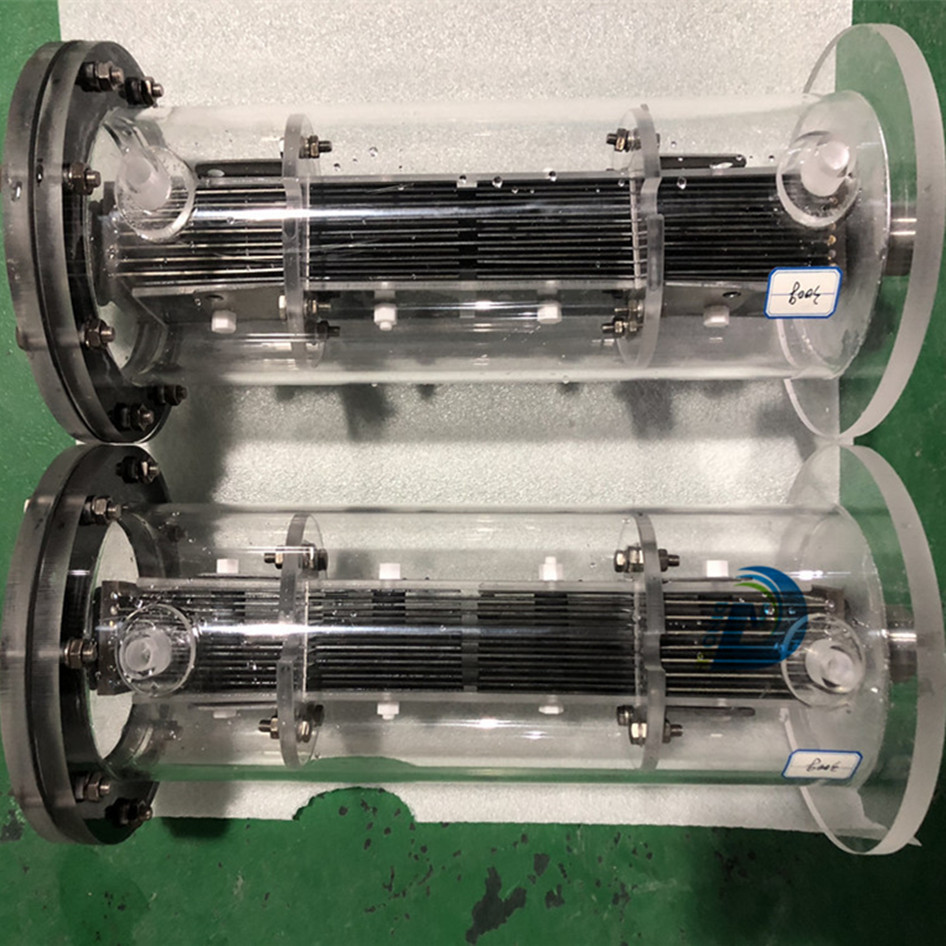

1、Mode: DN-C200 titanium electrolyzer

2、available chlorine (g/h): 200g/h

3、Available chlorine: 2000ppm

4、Use raw material: salt+Tap water

5、Salt concentration: 3%

6、Disinfection method: Prepared sodium hypochlorite disinfection solution on site and dilute it in proportion for dosing .

Characteristics:

1. without storing chemical agents and secondary pollution.

2. preparing sodium hypochlorite on site, so that the disinfectant has the greatest activity and easy to dosing.

3. The equipment is easy to operate and can be produced directly by setting the required concentration.

After two years of normal operation of the equipment, the rate of sterilization and algae elimination was still 99.9%.
