The electrolysis unit for preparing the hypochloric acid water adopts the Diaphragm Electrolytic cell. Just only salt+water+Electricity to produce disinfection solution with Adjustable density.
The optimum design of electrolytic cell structure, the rational choice of electrode and diaphragm material is the key to improve the efficiency of current, reduce the voltage of the tank and save energy.
Product Description
The electrolysis unit for preparing the hypochloric acid water adopts the Diaphragm Electrolytic cell. Just only salt+water+Electricity to produce disinfection solution with Adjustable density.
The optimum design of electrolytic cell structure, the rational choice of electrode and diaphragm material is the key to improve the efficiency of current, reduce the voltage of the tank and save energy.
Technology Comparison

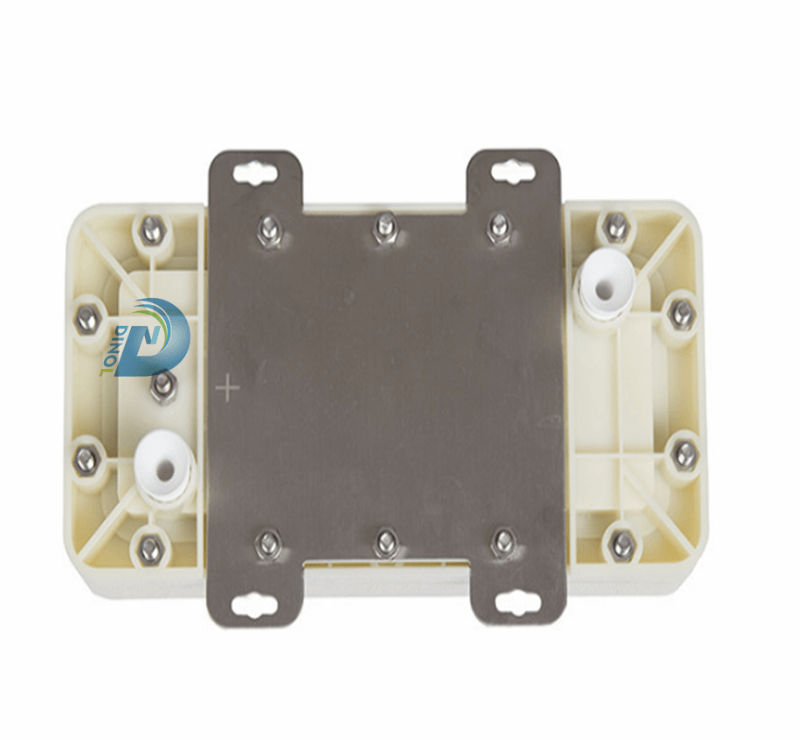

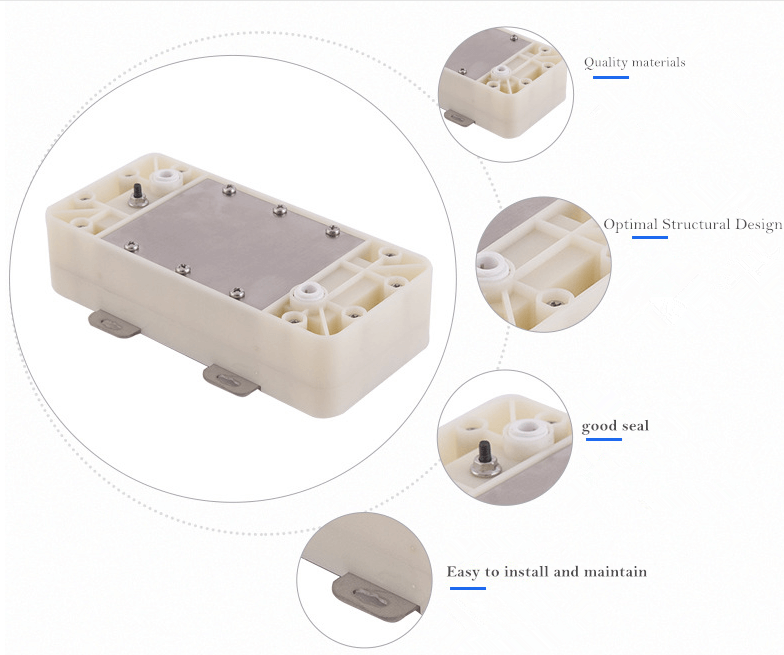

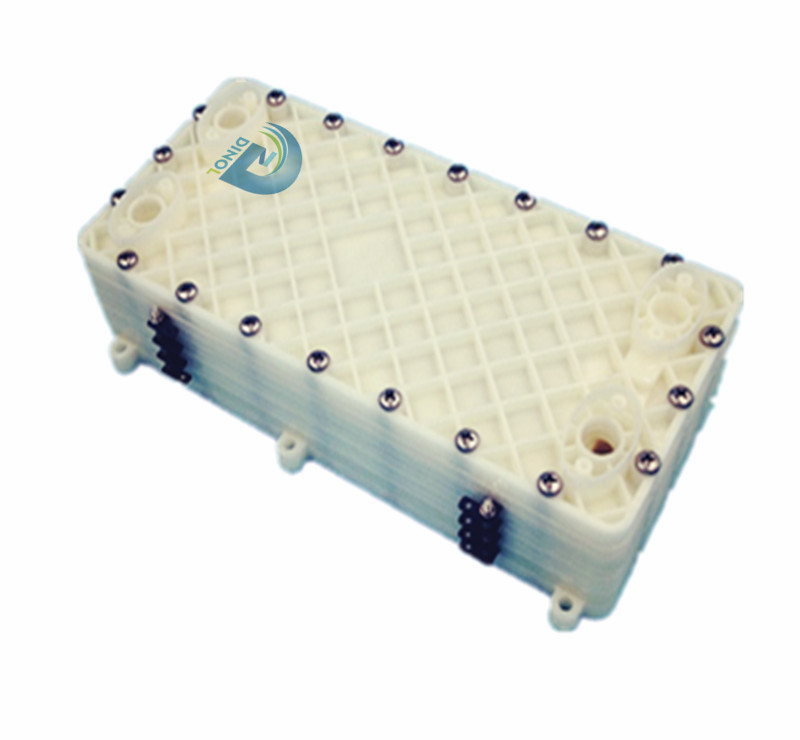

A diaphragm electrolytic cell is composed of two or more overlaid modules.
The core components and parameters of the cell:
Electrode: Titanium coating anode(TI-Pt/Pt-Ir/Ru-Ir), and titanium cathode
Cell material: ABS/UPVC
Diaphragm: Ionic membrane
Inlet water: Tap water (no impurities)
Liquid flow: 1-4L/min
Voltage: DC1-12V
ORP（MV）: 0-400MV
Effective chlorine concentration: 50-200ppm
Dimensions: 175×105×70mm
